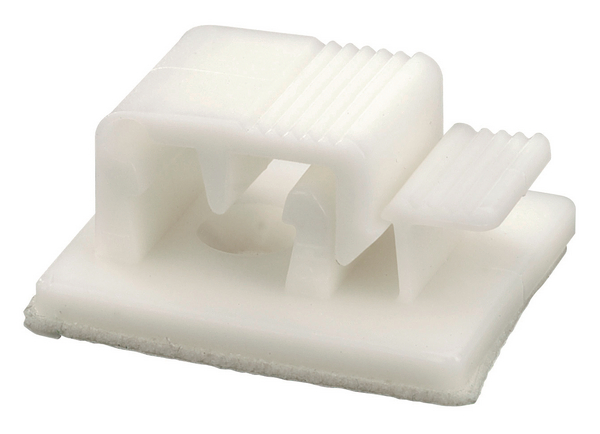

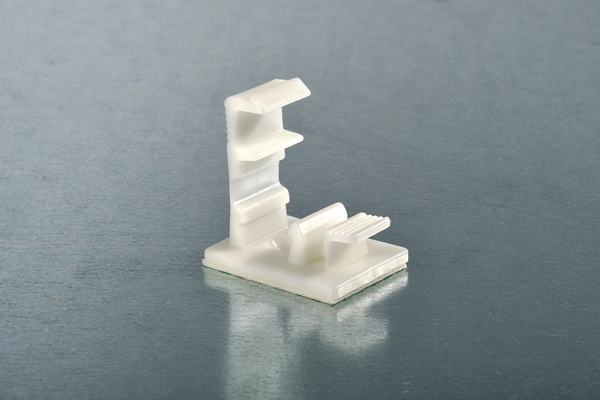

Clip de fixation a usage adhésif, ⌀3.3 mm
Article 150-11294 | ASI-Clip-PA66HIR-NA

Copied
  • Clip adhésif ou à visser
  • Clip disposant d'un rabat pour maintenir fermement câbles et faisceaux
  • Ajout et retrait possible de câbles en cours ou après installation

Application Le clip ASI à été spécialement conçus pour un maintien sûr et particulièrement adapté des conduits ASI Bus.
Brève description Clip adhésif avec capot 25x20 mm en PA66 naturel - ASI
Contenu 500pcs
Couleur Naturel (NA)
Description Very Short (BMEcat) (max. 40 characters) Clip adhésif naturel - ASI
GLOBAL PART DESCRIPTION ASI-Clip-PA66HIR-NA
Matière Polyamide 6.6, modifié chocs (PA66HIR)
Nom du produit Embase adhésive ou à visser ASI-Clip
Poids/unité 0.002346kg
Qté par pcs.
Référence ASI-Clip
Résiste aux UV Non
Type de fixation Coller
Variante Fermé
⌀ du toron AS interface cable

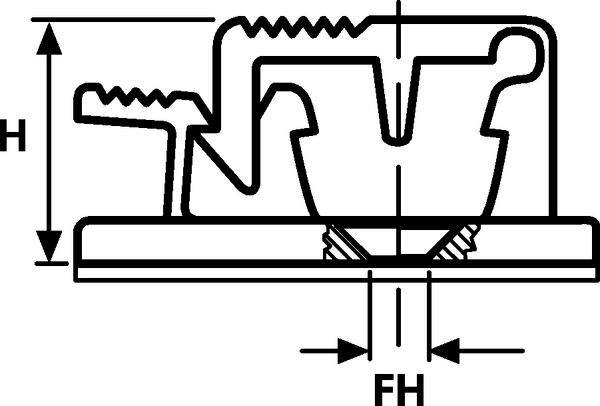

⌀ trou de fixation (FH) 3.3 mm
Epais. adhésif (TA) nom. 0.8
Haut. (H) 11.7mm

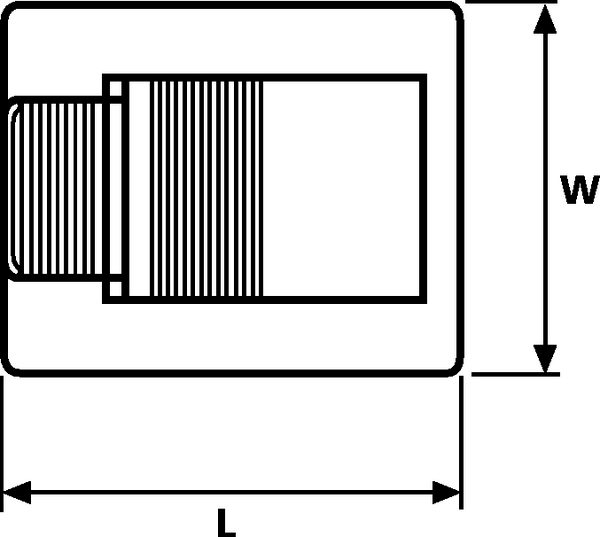

Larg. (W) 20.0mm
Long. (L) 25.0mm
Adhésif Acrylate sur mousse en polyuréthane
Conformité ROHS Oui
ELV conforme (article 4 - 2) Oui
Homologation(s)
Produits dangereux (oui/non) Non
Températures d'utilisation °C De -40 °C à +80 °C
Températures d'utilisation de l'adhésif Jusqu’à +105 °C
Tenue au feu UL94 HB (sauf adhésif)
Code douanier 39269097
EAN13 / GTIN13 4031026119366
Packaging PL1 - Hauteur (m) 0.15m
Packaging PL1 - Largeur (m) 0.41m
Packaging PL1 - Longueur (m) 0.3m
Packaging PL1 - Poids (KG) 1.194815kg
Packaging PL1 - Quantité 500
Packaging PL1 - Volume (m³) 0.01845
Packaging PL1 - nature/type sachet
Packaging PL3 - Hauteur (m) 0.204m
Packaging PL3 - Longueur (m) 0.591m
Packaging PL3 - Poids (KG) 8.13089kg
Packaging PL3 - Quantité 3000
Packaging PL3 - Volume (m³) 0.048
Packaging PL3 - nature/type boîte
Packaging PL3- Largeur (m) 0.398m
Packaging PL4 - Hauteur (m) 1.204m
Packaging PL4 - Longueur (m) 1.2m
Packaging PL4 - Poids (KG) 183.64kg
Packaging PL4 - Quantité 60000
Packaging PL4 - Volume (m³) 1.156
Packaging PL4 - nature/type Palette
Packaging PL4- Largeur (m) 0.8m
Pays d'origine PL
Code UNSPSC 31162305
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
